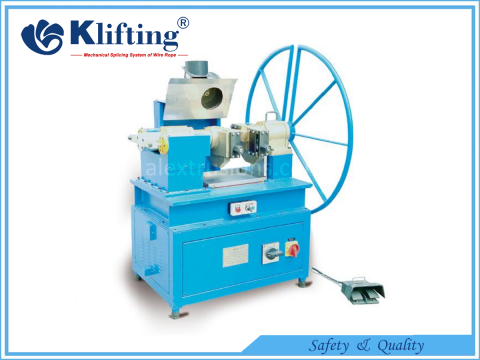

KA-1013 Wire Rope Annealing Machine With Smoke Exhaust Device
Wire Rope Annealing Machines
KA-1013 Wire Rope Annealing Machine With Smoke Exhaust Device
Description of Products
KA series machines are suitable for annealing and tapering different sizes of steel wire rope. The ends of steel wire rope are twisted and tapered.
Allows annealing and tapering different sizes of steel wire rope by adjusting the distance between the machine clamps.
The supply of current is controlled by foot switch, twist and pull apart the wire rope are controlled by two separate parts.
Unique design for grips to secure the wire rope properly
KA-1013 is the largest annealing and tapering machine, the power of pull apart the wire rope is supplied by hydraulic
Optional Accessories: Smoke exhaust device.
| Model | Working Power | Rated Power | Capacity | Output Setting | Weight | L×W×H/mm | Optional Accessories |
| KA-1013 | 380V/50HZ | 100KVA | 20mm-60mm | Tap positation | 600Kg | 1400×1300×1600 | Smoke exhaust device |
