Common Aluminum Oval Ferrule
The sizes fo common aluminum oval ferrules are from 1mm to 18mm which are corresponded to the European standard size requirments. The ferrules are extrusion by German extrusion machine and the alloy was heated by microwave. For this common type ferrules are usually used for the field which is not care about the strength of extension, that is to say, it is not use for lifting market. This type is usually used for the fishing market, such as aquaculture farms (all kinds of floating farms), wire rope fence and so on.
| Product Name | Common Aluminum Oval Ferrule |
| Standard | EN 13411-3 (DIN3093) |
| Brand | Klifting |
| Material | 3A12 Aluminum Alloy or Customized |
| Technology | Extrusion |
| Size | 1mm-18mm |
| Common Aluminum Ferrule | |||||

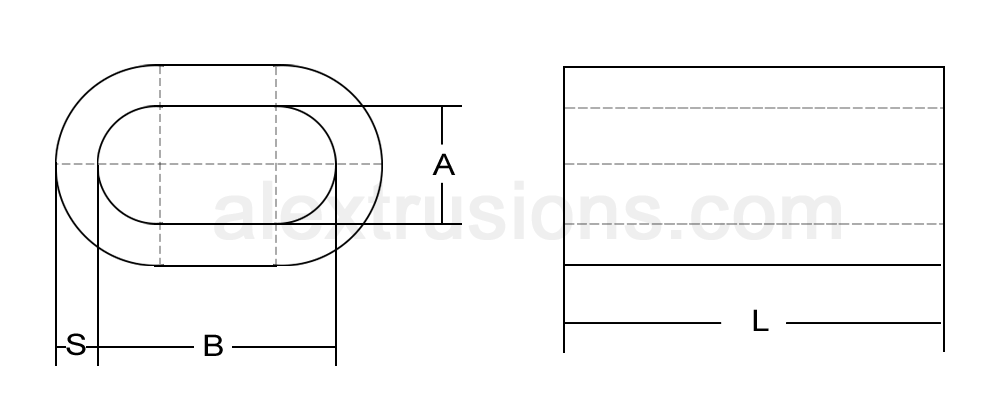

| Part.No | Ferrule Code | A(mm) | B(mm) | S(mm) | L(mm) |
| KDA10010 | 1 | 1.2 | 2.4 | 0.65 | 5 |
| KDA10015 | 1.5 | 1.7 | 3.4 | 0.75 | 6 |
| KDA10020 | 2 | 2.2 | 4.4 | 0.85 | 7 |
| KDA10025 | 2.5 | 2.7 | 5.4 | 1.05 | 9 |
| KDA10030 | 3 | 3.3 | 6.6 | 1.25 | 11 |
| KDA10035 | 3.5 | 3.8 | 7.6 | 1.5 | 13 |
| KDA10040 | 4 | 4.4 | 8.8 | 1.7 | 14 |
| KDA10045 | 4.5 | 4.9 | 9.8 | 1.9 | 16 |
| KDA10050 | 5 | 5.5 | 11 | 2.1 | 18 |
| KDA10060 | 6 | 6.6 | 13.2 | 2.5 | 21 |
| KDA10065 | 6.5 | 7.2 | 14.4 | 2.7 | 23 |
| KDA10070 | 7 | 7.8 | 15.6 | 2.9 | 25 |
| KDA10080 | 8 | 8.8 | 17.6 | 3.3 | 28 |
| KDA10090 | 9 | 9.9 | 19.8 | 3.7 | 32 |
| KDA10100 | 10 | 10.9 | 21.8 | 4.1 | 35 |
| KDA10110 | 11 | 12.1 | 24.2 | 4.5 | 39 |
| KDA10120 | 12 | 13.2 | 26.4 | 4.9 | 42 |
| KDA10130 | 13 | 14.2 | 28.4 | 5.4 | 46 |
| KDA10140 | 14 | 15.3 | 30.6 | 5.8 | 49 |
| KDA10160 | 16 | 17.5 | 35 | 6.7 | 56 |
| KDA10180 | 18 | 19.6 | 39.2 | 7.6 | 63 |
