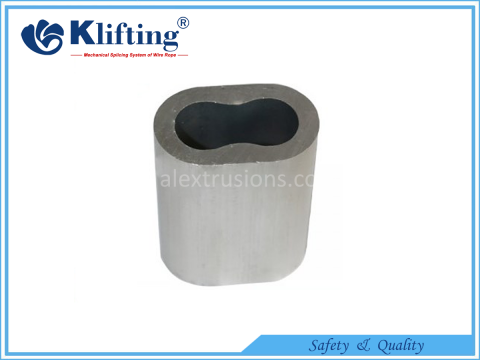

JIS Aluminum Ferrule
The JIS aluminium ferrule are made from a special designed profile. The JIS ferrule corresponds to Japanese standard for turn-back ferrule or ferrule secured eye termination，make according to the specific requirement of our clients.
The JIS aluminum ferrule can be used in basic applications, with bright or galvanized single layer steel wire ropes with round strands up to fill factor 0,60 and grade 1960. The types of rope lay shall be Ordinary or Lang lay. For Fibre core wire ropes larger than 60 mm the maximum rope grade is 1770/MPa.Wire ropes shall conform to EN 12385-4 and 5.
The diameter of JIS ferrule is small than the T ferrule after pressing. For economic reasons, the UM ferrule can be used as an alternative to the T ferrule at wire rope grades, less than 1960/MPa.
When properly applied, ferrules are capable of holding the rated breaking strength of the rope to which they are applied. However, to determine the exact holding strength, TENSION TEST must be performed before using. This step insures the proper selection of materials, the correct swaging procedure, and an ample margin of safety for the intended use.
| Product Name | JIS Aluminum Ferrule |
| Standard | EN13411-3(DIN3093) |
| Brand | Klifting |
| Material | Aluminum Alloy |
| Technology | Extrusion |
| Size | 6mm-40mm |
| JIS Aluminum Ferrule | |||||||
| Part No. | Ferrule Code | A(mm) | B(mm) | C(mm) | D(mm) | T(mm) | L(mm) |
| ZJ2016060 | 6 | 13.5 | 20.3 | 7.2 | 13.7 | 3.3 | 24 |
| ZJ2016080 | 8 | 17.4 | 26.6 | 9.2 | 18.4 | 4.1 | 32 |
| ZJ2016090 | 9 | 18.9 | 29.2 | 10.3 | 20.6 | 4.3 | 36 |
| ZJ2016100 | 10 | 20.5 | 32 | 11.5 | 23 | 4.5 | 40 |
| ZJ2016120 | 12 | 24.6 | 38.4 | 13.8 | 27.6 | 5.4 | 48 |
| ZJ2016140 | 14 | 28.1 | 44.2 | 16.1 | 32.2 | 6 | 56 |
| ZJ2016160 | 16 | 31.4 | 49.8 | 18.4 | 36.8 | 6.5 | 64 |
| ZJ2016180 | 18 | 34.7 | 55.4 | 20.7 | 41.4 | 7 | 72 |
| ZJ2016200 | 20 | 38 | 61 | 23 | 46 | 7.5 | 80 |
| ZJ2016220 | 22 | 41.7 | 67 | 25.3 | 50.6 | 8.2 | 88 |
| ZJ2016240 | 24 | 45 | 72.6 | 27.6 | 55.2 | 8.7 | 96 |
| ZJ2016260 | 26 | 51.9 | 81.8 | 29.9 | 59.8 | 11 | 104 |
| ZJ2016280 | 28 | 55.9 | 88.1 | 32.2 | 64.4 | 11.9 | 112 |
| ZJ2016300 | 30 | 59.4 | 93.9 | 34.5 | 69 | 12.5 | 120 |
| ZJ2016320 | 32 | 63.1 | 99.9 | 36.8 | 73.6 | 13.2 | 128 |
| ZJ2016340 | 34 | 65.1 | 104.2 | 39.1 | 78.2 | 13 | 136 |
| ZJ2016360 | 36 | 68.4 | 109.8 | 41.4 | 82.8 | 13.5 | 144 |
| ZJ2016380 | 38 | 71.6 | 115.3 | 43.7 | 87.3 | 14 | 152 |
| ZJ2016400 | 40 | 75.1 | 121 | 46 | 92 | 14.5 | 160 |
