Customized Swaging Dies for Swaging Machine
We have professional diemaking shop, we can manufacture all kinds of dies according to your requirement. In order to give the better service, please provide these information for us to customize the dies.

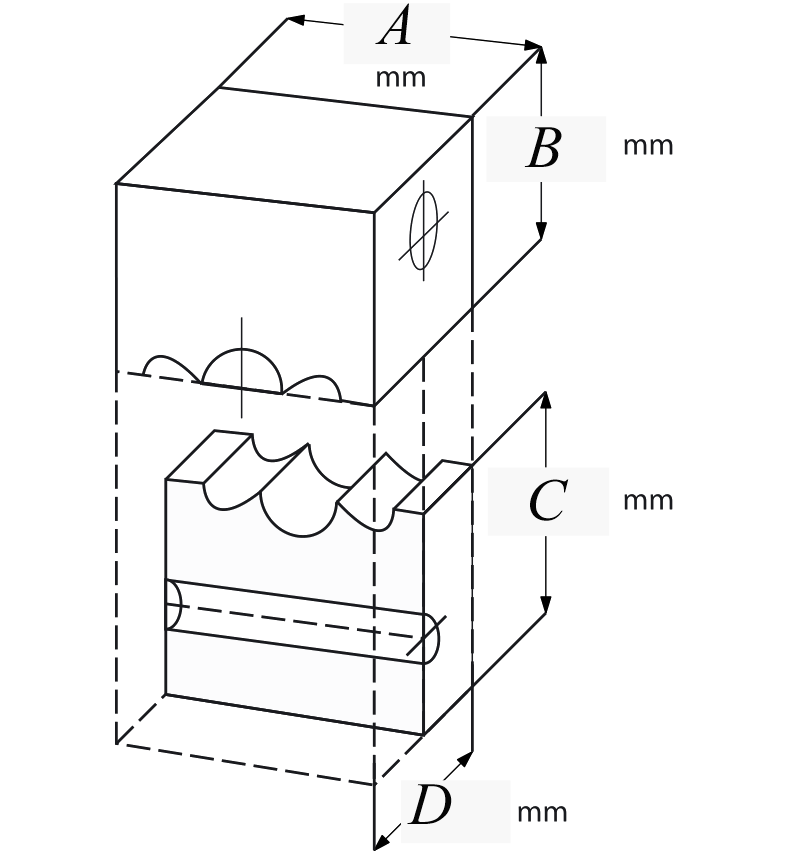

First, let us know the size as below picture show marked A,B,C,D (mm).
Second, choose the right way you use to fix your dies on your machine, there are some ways for your reference.
| Aluminum Ferrule | Number of | （FC)mm(0.4-0.5) | （IWR)mm(0.5-0.6) | After Pressing | Presure | |
| Extrusion Die | Fill Factor | Fill Factor | mm | Tolerance | (KN) | |
| 1 | 1 | 0.9-1.1 | 0.8-1.0 | 3 | 0.1 | 5 |
| 1.5 | 1.5 | 1.2-1.6 | 1.1-1.4 | 3.8 | 10 | |
| 2 | 2 | 1.7-2.1 | 1.5-1.9 | 4 | 20 | |
| 2.5 | 2.5 | 2.2-2.6 | 2.0-2.4 | 5 | 30 | |
| 3 | 3 | 2.7-3.2 | 2.5-2.9 | 6 | 45 | |
| 3.5 | 3.5 | 3.3-3.7 | 3.0-3.4 | 7 | 0.15 | 60 |
| 4 | 4 | 3.8-4.2 | 3.5-3.8 | 8 | 80 | |
| 4.5 | 4.5 | 4.3-4.7 | 3.9-4.3 | 9 | 100 | |
| 5 | 5 | 4.8-5.3 | 4.4-4.8 | 10 | 125 | |
| 6 | 6 | 5.4-6.3 | 4.9-5.8 | 12 | 180 | |
| 6.5 | 6.5 | 6.4-6.8 | 5.9-6.2 | 13 | 210 | |
| 7 | 7 | 6.9-7.4 | 6.3-6.7 | 14 | 0.3 | 250 |
| 8 | 8 | 7.5-8.4 | 6.8-7.7 | 16 | 320 | |
| 9 | 9 | 8.5-9.5 | 7.8-8.6 | 18 | 410 | |
| 10 | 10 | 9.6-10.5 | 8.7-9.6 | 20 | 500 | |
| 11 | 11 | 10.6-11.6 | 9.7-10.5 | 22 | 600 | |
| 12 | 12 | 11.7-12.6 | 10.6-11.5 | 24 | 0.4 | 720 |
| 13 | 13 | 12.7-13.7 | 11.6-12.5 | 26 | 850 | |
| 14 | 14 | 13.8-14.7 | 12.6-13.4 | 28 | 1000 | |
| 16 | 16 | 14.8-16.8 | 13.5-15.3 | 32 | 0.5 | 1300 |
| 18 | 18 | 16.9-18.9 | 15.4-17.3 | 36 | 1600 | |
| 20 | 20 | 19.0-21.0 | 17.4-19.2 | 40 | 0.6 | 2000 |
| 22 | 22 | 21.1-23.1 | 19.3-21.1 | 44 | 2400 | |
| 24 | 24 | 23.2-25.2 | 21.2-23.0 | 48 | 2900 | |
| 26 | 26 | 25.3-27.3 | 23.1-24.9 | 52 | 0.8 | 3400 |
| 28 | 28 | 27.4-29.4 | 25.0-26.8 | 56 | 3900 | |
| 30 | 30 | 29.5-31.5 | 26.9-28.8 | 60 | 4500 | |
| 32 | 32 | 31.6-33.6 | 28.9-30.7 | 64 | 1 | 5100 |
| 34 | 34 | 33.7-35.7 | 30.8-32.6 | 68 | 5800 | |
| 36 | 36 | 35.8-37.8 | 32.7-34.5 | 72 | 6500 | |
| 38 | 38 | 37.9-39.9 | 34.6-36.4 | 76 | 1.1 | 7200 |
| 40 | 40 | 40.0-42.0 | 36.5-38.3 | 80 | 8000 | |
| 42 | 42 | 42.1-44.1 | 38.4-40.3 | 84 | 8800 | |
| 44 | 44 | 44.2-46.2 | 40.4-42.2 | 88 | 9700 | |
| 46 | 46 | 46.3-48.3 | 42.3-44.1 | 92 | 1.3 | 10600 |
| 48 | 48 | 48.0-50.4 | 44.0-46.2 | 96 | 11500 | |
| 50 | 50 | 48.4-52.5 | 44.2-47.9 | 100 | 1.6 | 12500 |
| 52 | 52 | 52.0-54.6 | 46.3-47.9 | 104 | 13500 | |
| 54 | 54 | 52.6-56.7 | 48.0-51.7 | 108 | 14600 | |
| 56 | 56 | 56.0-58.8 | 50.5-51.9 | 112 | 1.7 | 15700 |
| 58 | 58 | 56.860.9 | 51.8-55.6 | 116 | 16800 | |
| 60 | 60 | 60.6-63.0 | 54.7-55.9 | 120 | 18000 | |
| 62 | 62 | 61.0-65.1 | 55.7-59.4 | 124 | 1.8 | 19200 |
| 66 | 66 | 65.2-69.3 | 69.5-63.2 | 132 | 22000 | |
| 70 | 70 | 69.4-73.5 | 63.3-67.1 | 140 | 24500 | |
| 74 | 74 | 73.6-77.7 | 67.2-70.9 | 148 | 2 | 27000 |
| 78 | 78 | 77.8-81.9 | 71.0-74.7 | 156 | 30000 | |
| 82 | 82 | 82.0-86.1 | 74.8-78.6 | 164 | 34000 | |
| 86 | 86 | 85.1-90.3 | 77.7-82.4 | 172 | 2.2 | 37000 |
| 94 | 94 | 93.7-98.7 | 82.5-90.2 | 188 | 44200 | |
| 116 | 116 | 113.4-121.8 | 105.5-111.1 | 232 | 67000 | |
| 126 | 126 | 121.9-132.3 | 111.1-120.7 | 252 | 2.6 | 79000 |
