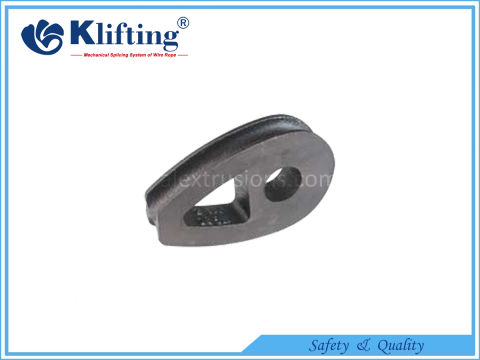

DIN3091 Heavy Duty Wire Rope Thimble

Part No. Rope Size Dimensions(mm)
mm A B A1 C L1 H
KDIN3091HD008 8 9 15 14 40 66 4.5
KDIN3091HD010 10 11 17.5 18 50 82 6
KDIN3091HD012 12 13 20 21 60 98 7.5
KDIN3091HD014 14 16 23.5 25 70 114 9
KDIN3091HD016 16 18 26 28 80 130 10.5
KDIN3091HD018 18 20 28.5 31 90 145 12
KDIN3091HD020 20 22 31 35 100 161 13.5
KDIN3091HD022 22 24 33.5 38 110 177 15
KDIN3091HD024 24 26 36 41 120 193 16.5
KDIN3091HD026 26 29 39.5 44 130 209 18
KDIN3091HD028 28 31 42 47 140 224 20
KDIN3091HD032 32 35 47 53 160 256 23
KDIN3091HD036 36 40 53 59 180 288 26
KDIN3091HD040 40 44 58 65 200 320 29
KDIN3091HD044 44 48 63 70 220 352 32
KDIN3091HD048 48 53 69 76 240 384 35
