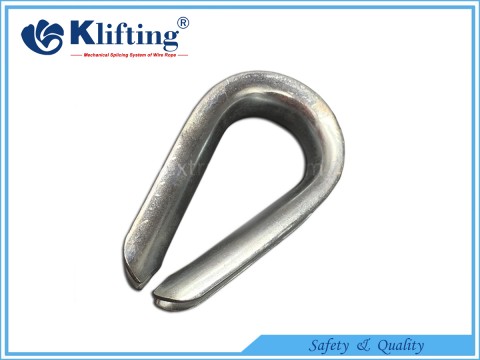

DIN6899 A Wire Rope Thimble

DIN6899 A Wire Rope Thimble

Thimbles

DIN6899 A Wire Rope Thimble

Part No. Rope Size Dimensions(mm) Weight
mm A B C D E F kg/pcs
KDIN6899A002 2.5 28 21.5 16 10 5 3 0.014
KDIN6899A003 3 30 23.5 17 11 5.5 3.5 0.35
KDIN6899A004 4 34 26.5 19 12 6 4 0.42
KDIN6899A005 5 36 28 20 13 7 5 0.8
KDIN6899A006 6 38 30 22 14 8 6 0.85
 KDIN6899A007 7 43 33 24 15 9 7 1.1
KDIN6899A008 8 46 35 26 16 10 8 1.7
KDIN6899A009 9 50 39 29 18 11 9 2.1
KDIN6899A010 10 56 43 32 20 13 10 3.5
KDIN6899A011 11 63 47.5 36 22 14 11 3.7
KDIN6899A012 12 68 51.5 40 24 15 12 5.25
KDIN6899A013 13 75 56.5 44 26 17 13 7.25
KDIN6899A014 14 82 61 48 28 18 14 8.33
KDIN6899A016 16 91 69.5 54 32 21 16.5 12.3
KDIN6899A018 18 102 78 59 35 24 18 18.5
KDIN6899A020 20 114 86.5 68 40 28 20 31.5
KDIN6899A022 22 126 95 76 44 30 22 36.5
KDIN6899A024 24 135 103.5 84 48 32 24 41.7
KDIN6899A028 28 162 120.5 100 56 38 28 72.1
