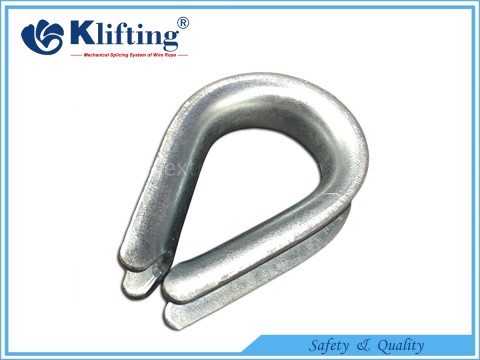

DIN6899 B Wire Rope Thimble

DIN6899 B Wire Rope Thimble

Thimbles

DIN6899 B Wire Rope Thimble

Part No. Rope Size Dimensions(mm) Weight
mm A B C D E F kg/pcs
KDIN6899B003 3 28 19 18.5 12 6 3 0.5
KDIN6899B004 4 30 21 20.5 13 7 4 0.8
KDIN6899B005 5 33 23 22.5 14 8 5 1
KDIN6899B006 6 39 26 27 16 10 6 1.6
KDIN6899B007 7 43 30 30 18 11 7 1.9
KDIN6899B008 8 48 32 33 20 12 8 3
KDIN6899B010 10 58 38 39 24 14 10 4.7
KDIN6899B012 12 69 45 47 28 17 12 6.8
KDIN6899B013 13 73 48 50 30 18 13 8
KDIN6899B014 14 77 51 53 32 19 14 10
KDIN6899B016 16 88 58 60 36 22 16 14.5
KDIN6899B017 17 95 61 65 38 25 17 18
KDIN6899B018 18 100 64 68 40 26 18 20
KDIN6899B020 20 113 72 75 45 28 20 29
KDIN6899B022 22 123 80 82 50 30 22 32
KDIN6899B024 24 135 90 92 56 34 24 47
KDIN6899B026 26 145 99 100 62 36 26 59
KDIN6899B028 28 162 112 110 70 38 28 80
KDIN6899B030 30 175 120 120 75 42 30 110
