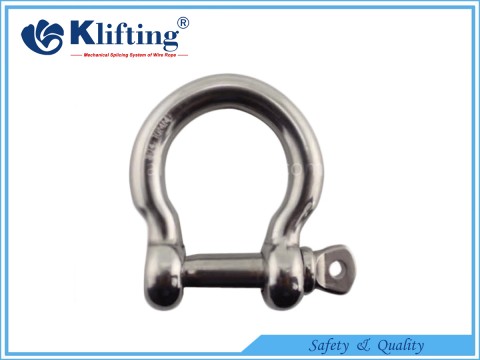

Euro Type Large Bow Shackle
| Part No. | Size | Dimensions(mm) | |||
| mm | A | B | C | D | |
| KEBS040 | 4 | 4 | 4 | 8 | 16 |
| KEBS050 | 5 | 5 | 5 | 10 | 19 |
| KEBS060 | 6 | 6 | 6 | 12 | 24 |
| KEBS080 | 8 | 8 | 8 | 16 | 32 |
| KEBS100 | 10 | 10 | 10 | 20 | 40 |
| KEBS120 | 12 | 12 | 12 | 24 | 48 |
| KEBS140 | 14 | 14 | 16 | 28 | 56 |
| KEBS160 | 16 | 16 | 20 | 32 | 64 |
| KEBS180 | 18 | 18 | 22 | 36 | 72 |
| KEBS200 | 20 | 20 | 25 | 40 | 76 |
| KEBS220 | 22 | 22 | 28 | 44 | 88 |
| KEBS250 | 25 | 25 | 32 | 50 | 100 |
