Flemish Eye Sleeve

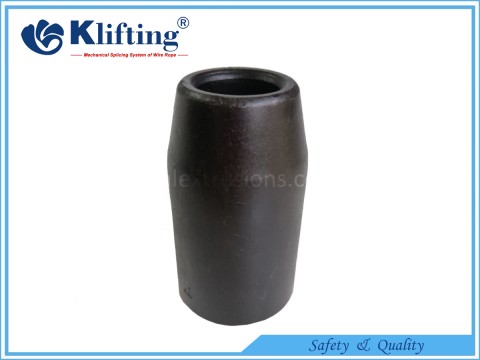

We are the leading manufacturer of Flemish Eye swaging sleeves in China. All our Flemish Eye sleeves have corrosion protection and are made according to the highest quality standards. Surface treatment could be black oxidized or galvanized. Sleeves are stamped for traceability with code, size, and batch number.
All our Flemish Eye swaging sleeves are tested for better swageability. Testing includes hardness test, chemical analysis, microstructure analysis and closed flattening test according to EN 13411-3:2004 standard.
The Flemish Eye sleeves satisfy the European standards, EN 13411-3, for mechanical splicing.
Sleeves are recommended for use with 6x19, or 6x37, IPS or XIP (EIP), XXIP (EEIP), RRL, FC or IWRC wire rope.
Not applicable on rotation resistant wire ropes. When properly applied, the terminations have an efficiency rating of more than 90% according to EN 13411-3, based on the catalogue strength of wire rope.
NOTE! Before using our Flemish Eye sleeves with any other type lay, construction or grade of wire rope, it is recommended that the termination to be destructive tested to prove the adequacy of the assembly to be manufactured.
| Flemish Eye Sleeve | |||||||||
| Part No. | Ferrule Code | Rope Size | A | B | D | E | C | Size After Swage | Weight |
| inch | inch | inch | kg/100pcs | ||||||
| KFS11060 | 6 | 1/4 | 1 | 0.66 | 0.31 | 0.28 | 0.47 | 0.57 | 2.27 |
| KFS11080 | 8 | 5/16 | 1.5 | 0.91 | 0.38 | 0.44 | 0.62 | 0.75 | 6.36 |
| KFS11100 | 10 | 3/8 | 1.5 | 0.91 | 0.47 | 0.39 | 0.66 | 0.75 | 6.36 |
| KFS11110 | 11 | 7/16 | 2 | 1.22 | 0.53 | 0.65 | 0.85 | 1.01 | 15 |
| KFS11130 | 13 | 1/2 | 2 | 1.22 | 0.63 | 0.56 | 0.91 | 1.01 | 13 |
| KFS11140 | 14 | 9/16 | 2.75 | 1.47 | 0.7 | 0.63 | 1.03 | 1.24 | 29 |
| KFS11160 | 16 | 5/8 | 2.75 | 1.47 | 0.75 | 0.63 | 1.09 | 1.24 | 26 |
| KFS11190 | 19 | 3/4 | 3.19 | 1.72 | 0.91 | 0.84 | 1.28 | 1.46 | 40 |
| KFS11220 | 22 | 7/8 | 3.56 | 2.03 | 1.03 | 1 | 1.53 | 1.68 | 60 |
| KFS11260 | 26 | 1 | 4 | 2.28 | 1.16 | 1.13 | 1.72 | 1.93 | 89 |
| KFS11280 | 28 | 1-1/8 | 4.8 | 2.5 | 1.28 | 1.25 | 1.94 | 2.13 | 118 |
| KFS11320 | 32 | 1-1/4 | 5.19 | 2.78 | 1.44 | 1.41 | 2.16 | 2.32 | 161 |
| KFS11350 | 35 | 1-3/8 | 5.81 | 3 | 1.56 | 1.56 | 2.38 | 2.52 | 192 |
| KFS11380 | 38 | 1-1/2 | 6.25 | 3.25 | 1.69 | 1.69 | 2.63 | 2.71 | 227 |
| KFS11450 | 45 | 1-3/4 | 7.25 | 3.84 | 1.94 | 1.97 | 3.13 | 3.1 | 366 |
| KFS11500 | 50 | 2 | 8.5 | 4.38 | 2.25 | 2.25 | 3.63 | 3.56 | 514 |
| KFS11570 | 57 | 2-1/4 | 9.56 | 5.03 | 2.5 | 2.53 | 4.03 | 4.12 | 879 |
| KFS11640 | 64 | 2-1/2 | 10.5 | 5.5 | 2.75 | 2.81 | 4.5 | 4.5 | 1068 |
| KFS11700 | 70 | 2-3/4 | 11.5 | 5.75 | 3 | 3.09 | 4.75 | 4.7 | 1271 |
| KFS11760 | 76 | 3 | 12 | 6 | 3.25 | 3.38 | 5 | 4.96 | 1335 |
| KFS11820 | 82 | 3-1/4 | 13 | 6.5 | 3.86 | 3.54 | 5.43 | 5.37 | 1650 |
| KFS11890 | 89 | 3-1/2 | 14 | 7 | 3.88 | 3.94 | 5.84 | 5.77 | 2106 |
| KFS11950 | 95 | 3-3/4 | 15 | 7.5 | 4.06 | 4.25 | 6.31 | 6.23 | 2497 |
| KFS11100 | 100 | 4 | 16 | 8.13 | 4.38 | 4.5 | 6.81 | 6.69 | 3087 |
| KFS11115 | 115 | 4-1/2 | 18 | 9.13 | 4.88 | 5.06 | 7.66 | 7.45 | 4540 |
| KFS11130 | 130 | 5 | 20 | 10.52 | 5.5 | 5.63 | 8.73 | 8.28 | 6600 |
| KFS11150 | 150 | 6 | 24 | 12.54 | 6.5 | 6.75 | 10.2 | 9.93 | 12300 |
