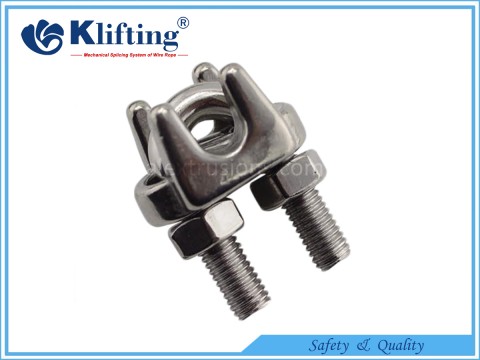

JIS Wire Rope Clip
| Part No. | Size | Dimensions(mm) | |||||
| mm | A | B | C | D | E | F | |
| KJISC020 | 2 | 15 | 12 | 9 | 8 | 20 | 3 |
| KJISC030 | 3 | 16 | 14 | 12 | 8 | 21 | 3 |
| KJISC040 | 4 | 17 | 15.5 | 11.5 | 8 | 22 | 4 |
| KJISC050 | 5 | 23 | 18.5 | 14 | 12 | 28.5 | 5 |
| KJISC060 | 6 | 27 | 20.5 | 17 | 14.5 | 33 | 6 |
| KJISC080 | 8 | 33.5 | 27 | 20 | 17.5 | 40 | 8 |
| KJISC0100 | 10 | 43 | 33.5 | 23 | 21 | 50 | 10 |
| KJISC0120 | 12 | 49.5 | 37.5 | 26.5 | 25.5 | 64 | 12 |
| KJISC0160 | 16 | 59 | 45 | 36.5 | 32 | 70 | 14 |
