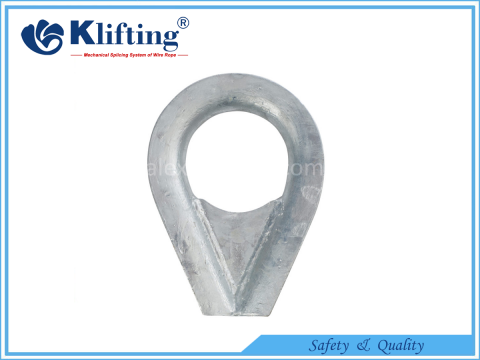

K2B Heavy Duty Thimble

K2B Heavy Duty Thimble

Thimbles

K2B Heavy Duty Thimble

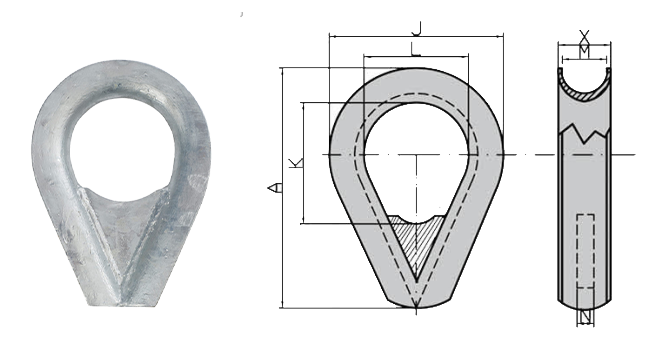

Part No. Dimensions Weight
A(inch) J(mm) Kmm) Lmm) Mmm) Nmm) Xmm) kg/100pcs
KK2B0004 4 75 50 50 17 5 22 30
KK2B0412 4-1/2 85 50 53 19 5 25 42
KK2B0005 5 100 60 60 21 5 29 67
KK2B0512 5-1/2 110 60 65 23 5 33 83
KK2B0006 6 115 70 70 25 10 34 110
KK2B0007 7 135 75 80 30 10 38 160
KK2B0008 8 155 80 100 33 10 44 200
KK2B0009 9 175 110 115 38 10 49 270
KK2B0010 10 190 120 120 41 15 52 395
KK2B0011 11 210 130 130 46 15 60 600
KK2B0012 12 225 140 140 52 15 65 886
KK2B0014 14 240 150 150 53 20 68 1100
KK2B1770 17x70 290 185 180 70 20 88 1980
KK2B1770 17x70 290 185 180 72 20 104 1880
KK2B0019 19 320 225 220 81 20 121 3060
KK2B0022 22 375 280 240 92 20 132 3800
KK2B0024 24 410 280 250 105 25 145 5000
KK2B25108 25x108 430 280 265 108 28 148 5800
KK2B25115 25x115 430 280 265 115 28 155 5800
KK2B0026 26 450 280 280 130 30 170 6300
KK2B26120 26x120 450 280 280 123 30 163 6300
