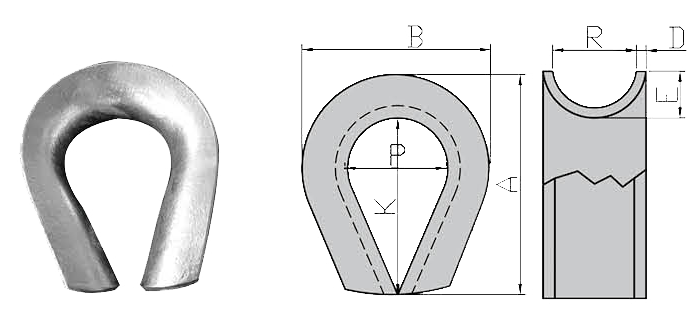

| Part No. | Rope Size | Dimensions(mm) | Weight | ||||||
| inch | A | B | D | E | P | K | R | kg/pcs | |
| KK30214 | 2-1/4 | 57 | 47 | 3 | 8 | 26 | 42 | 16 | 0.08 |
| KK30212 | 2-1/2 | 64 | 55 | 4 | 9 | 32 | 48 | 18 | 0.14 |
| KK30003 | 3 | 76 | 64 | 4 | 10 | 38 | 58 | 20 | 0.19 |
| KK30314 | 3-1/4 | 82 | 67 | 4 | 11 | 39 | 60 | 22 | 0.26 |
| KK30312 | 3-1/2 | 89 | 75 | 4 | 13 | 42 | 74 | 26 | 0.28 |
| KK30004 | 4 | 102 | 80 | 5 | 16 | 50 | 78 | 32 | 0.52 |
| KK30005 | 5 | 127 | 110 | 6 | 20 | 65 | 95 | 40 | 0.97 |
| KK30006 | 6 | 152 | 120 | 7 | 24 | 75 | 115 | 28 | 1.5 |
| KK30007 | 7 | 178 | 140 | 7 | 28 | 85 | 140 | 56 | 2.1 |
| KK30008 | 8 | 203 | 160 | 8 | 32 | 105 | 160 | 54 | 3.2 |
| KK30009 | 9 | 229 | 180 | 10 | 36 | 110 | 178 | 72 | 5 |
| KK30010 | 10 | 254 | 200 | 10 | 40 | 120 | 190 | 80 | 6.1 |
| KK30011 | 11 | 279 | 220 | 12 | 45 | 145 | 210 | 90 | 9 |
| KK30012 | 12 | 305 | 245 | 14 | 51 | 150 | 230 | 102 | 13.2 |
| KK30014 | 14 | 356 | 300 | 14 | 58 | 170 | 290 | 115 | 17.2 |
| KK30016 | 16 | 406 | 320 | 185 | 310 | 130 | |||
| KK30018 | 18 | 350 | 350 | 205 | 340 | 150 | |||
