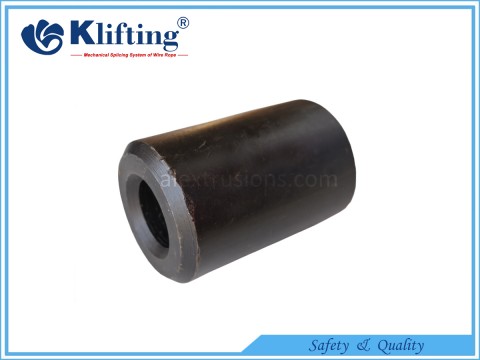

Steel Swaging Button
Special processed carbon steel
Better swage ability
Stamp for identification after swaging
| Part No. | Rope Size | A | B | C | Weight | |
| mm | inch | mm | kg | |||
| K3000108 | 3 | 1/8 | 10.67 | 12.7 | 3.56 | 0.009 |
| K3000316 | 5 | 3/16 | 14.22 | 17.78 | 5.08 | 0.018 |
| K3000104 | 6-7 | 1/4 | 17.27 | 26.92 | 7.87 | 0.036 |
| K3000516 | 8 | 5/16 | 22.35 | 28.7 | 9.14 | 0.073 |
| K3000308 | 9-10 | 3/8 | 22.35 | 37.59 | 10.67 | 0.068 |
| K3000716 | 11 | 7/16 | 28.7 | 41.4 | 12.19 | 0.136 |
| K3000102 | 13 | 1/2 | 33.27 | 48.01 | 13.97 | 0.227 |
| K3000916 | 14 | 9/16 | 36.58 | 51.31 | 15.49 | 0.317 |
| K3000508 | 16 | 5/8 | 39.62 | 61.47 | 17.02 | 0.454 |
| K3000304 | 18-20 | 3/4 | 42.67 | 69.6 | 20.32 | 0.594 |
| K3000708 | 22 | 7/8 | 50.8 | 83.06 | 23.88 | 0.998 |
| K3010000 | 25-26 | 1 | 57.15 | 93.22 | 26.92 | 1.406 |
| K3010108 | 28-29 | 1-1/8 | 65.02 | 102.87 | 30.23 | 2.041 |
| K3010104 | 31-32 | 1-1/4 | 71.37 | 116.08 | 33.78 | 2.948 |
