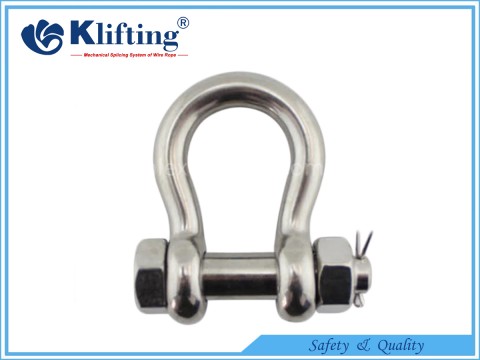

US Type Bow Shackle With Pin
| Part No. | Size | Dimensions(mm) | ||||
| inch | A | B | C | D | E | |
| KUBS00316 | 3/16 | 4.8 | 9 | 15 | 22 | 6 |
| KUBS00104 | 1/4 | 6.4 | 12 | 20 | 28 | 8 |
| KUBS00516 | 5/16 | 8 | 13 | 21 | 31 | 9 |
| KUBS00308 | 3/8 | 9.5 | 16 | 26 | 36 | 11 |
| KUBS00716 | 7/16 | 11.1 | 18 | 29 | 42 | 12 |
| KUBS00102 | 1/2 | 12.7 | 20 | 33 | 47 | 16 |
| KUBS00508 | 5/8 | 15.9 | 27 | 43 | 60 | 19 |
| KUBS00304 | 3/4 | 19 | 31 | 51 | 71 | 22 |
| KUBS00708 | 7/8 | 22.2 | 36 | 58 | 84 | 25 |
| KUBS10000 | 1 | 25.4 | 43 | 68 | 95 | 28 |
| KUBS10108 | 1-1/8 | 28.6 | 46 | 74 | 108 | 31 |
| KUBS10104 | 1-1/4 | 32.8 | 51 | 82 | 119 | 35 |
| KUBS10308 | 1-3/8 | 36 | 57 | 92 | 133 | 38 |
| KUBS10102 | 1-1/2 | 38.9 | 60 | 98 | 146 | 41 |
| KUBS10304 | 1-3/4 | 46.7 | 73 | 127 | 177 | 51 |
